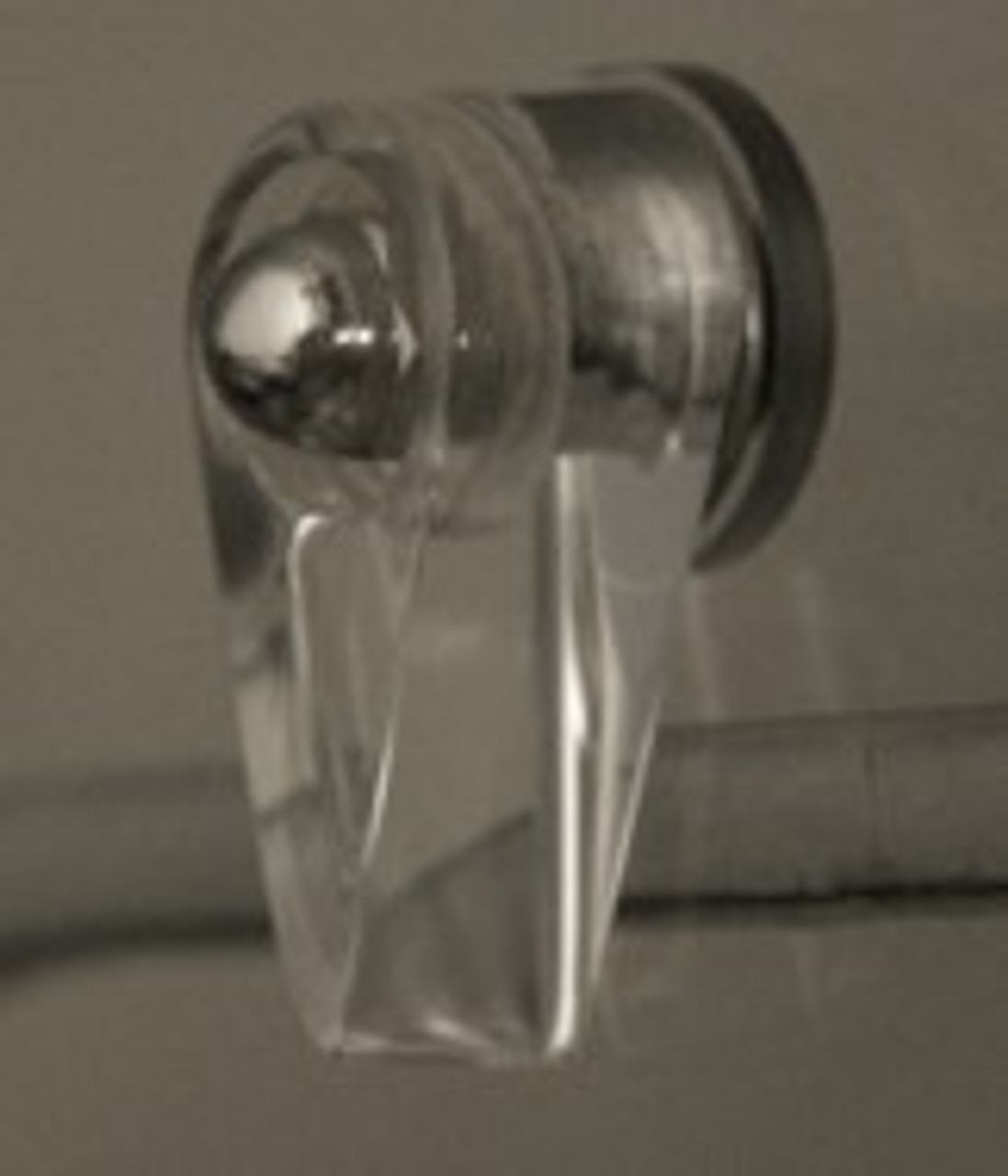

This is a standard latch kit we use on many of our window assemblies...
The Kit comes with everything you need to replace your existing latch. If you require drilling a hole the drill bits are below...
The Thickness of your window and vent window determines which screw we supply, please measure the two windows so we can Indicate Window Thickness for screw length.
Some stock parts as reference:
Factory Piper Pilot Window is .125" (1/8") Thick and has a 1/4" Vent
Factory Mooney Pilot window is .187" (3/16") thick and has a 5/16" Vent
Most of our photo-port assemblies are 3/16" with a 5/16" vent or 1/4" with a 3/8" Vent.
If in doubt order the longer screw and cut it down to fit.
If this is for an installed PMA Window, PLEASE INCLUDE MODEL & SERIAL NUMBER when you order.
